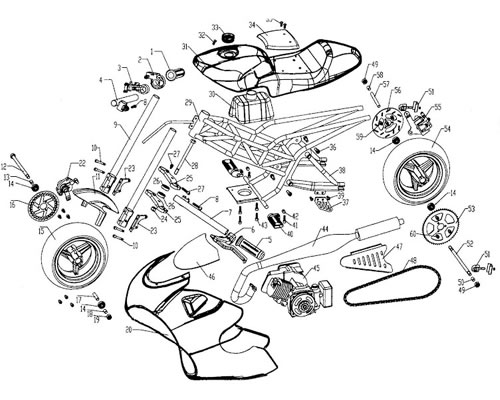

| 1 |
Right Handle Grip |
|
| 2 |
Revolving Handle |
|
| 3 |
Right Brake Handle |
|
| 4 |
Right Handle Pipe |
|
| 5 |
Left Handle Grip |
|
| 6 |
Left Brake handle |
|
| 6.1 |
Rear Brake Wire |
|
| 7 |
Left Handle Pipe |
|
| 8 |
Handle Locking Screw |
|
| 9 |
Front Fork |
|
| 10 |
Disc Brake Locking Screw |
|
| 11 |
Front Mudfender |
|
| 12 |
Front Axle |
|
| 13 |
Front Right Bearing Cover |
|
| 14 |
Bearing of Front Wheel |
|
| 15 |
Front Wheel |
|
| 15-1 |
Front Tyre |
|
| 15-2 |
Front Rim |
|
| 16 |
Front Disc |
|
| 17 |
Front Centre Bearing |
|
| 18 |
Front Axle Cover |
|
| 19 |
M10 Anti-loose Nut |
|
| 20 |
Front Head Fearing( Complete) |
|
| 21 |
Front Brake Pad |
|
| 22 |
Front Disc Brake Unit |
|
| 23 |
Splint for Disc Brake |
|
| 24 |
M10 Anti-loose Nut |
|
| 25 |
Upper Splint |
|
| 25-1 |
Lower Splint |
|
| 26 |
Bearing of Front Fork |
|
| 27 |
Bolt of Upper Splint |
|
| 27 |
Bolt of Lower Splint |
|
| 28 |
Front Axle Pin |
|
| 29 |
Chasis Frame |
|
| 30 |
Fuel Tank |
|
| 31 |
Tank Fairing |
|
| 32 |
Bolts for Upper Plastic Cover |
|
| 33 |
Fuel Cap |
|
| 34 |
Rubber Seat |
|
| 35 |
Nuts for Upper Plastic Cover |
|
| 36 |
Nut of Rear Fork |
|
| 37 |
Chain Guard |
|
| 38 |
Rear Fork |
|
| 39 |
Fixing Screw for Chain Guard |
|
| 40 |
Footrest |
|
| 41 |
Nuts for Footrest |
|
| 42 |
Bolts for Footrest |
|
| 43 |
Fixing Screw for Engine |
|
| 44 |
Exhaust Pipe |
|
| 45 |
Engine Complete |
|
| 45-1 |
Crankcase Top |
|
| 45-2 |
Cylinder Base |
|
| 45-3 |
Cylinder |
|
| 45-4 |
Clutch |
|
| 45-5 |
Bearing |
|
| 45-6 |
Bolt |
|
| 45-7 |
Pull start |
|
| 45-8 |
Carburetor |
|
| 45-9 |
Ignition Coil |
|
| 45-10 |
Oil Seal |
|
| 45-11 |
Enter Gas Gasket |
|
| 45-12 |
Exhaust Gasket |
|
| 45-13 |
Extension Spring |
|
| 45-14 |
Cylinder Base |
|
| 45-15 |
Crankcase Base |
|
| 45-16 |
Carburetor Gasket |
|
| 45-17 |
Woodruff Key |
|
| 45-18 |
Clutch Cap |
|
| 45-19 |
Crankcase Bottom |
|
| 45-20 |
Bearing |
|
| 45-21 |
Speed Control Box |
|
| 45-22 |
Oil Tube |
|
| 45-23 |
Filter |
|
| 46 |
Windshield |
|
| 47 |
Chain Cover |
|
| 48 |
Chain |
|
| 49 |
Nut of Rear Wheel |
|
| 50 |
Rear Axle Cover |
|
| 51 |
Rear Jack |
|
| 52 |
Rear Axle Rod |
|
| 53 |
Rear Chain Sprocket |
|
| 54 |
Rear Wheel |
|
| 54.1 |
Rear Tyre |
|
| 54.2 |
Rear Rim |
|
| 55 |
Rear Disc Brake Unit |
|
| 56 |
Rear Disc |
|
| 57 |
Rear Centre Axle Pin |
|
| 58 |
Rear Bearing Cover |
|
| 59 |
Fixing Bolts for Rear Disc |
|
| 60 |
Nut of Rear Chain Plate |
|
| 61 |
Rear Brake Pad |
|
| a-1 |
Sticker Set |
|
| a-2 |
Cut off Switch |
|
| a-3 |
Complete Fairing (CODE NO 11, 20, 31, 46) |
|
| a-4 |
Bobbins |
|
| a-5 |
Spacers |
|
| a-6 |
Bolts |
|
| a-7 |
Chrome Cover |
|
| a-8 |
Aluminium Side Cover |
|
| a-9 |
Fairing Bracket |
|
| a-10 |
Belly Pan |
|
| a-11 |
Fairing Spacer Bracket |
|
| a-12 |
Fila Sticker Kit |
|
| a-13 |
Telefonica Sticker Kit |
|
| a-14 |
Repsol Sticker Kit |
|
| a-15 |
6 Tooth Sprocket |
|
| a-16 |
7 Tooth Sprocket |
|
| a-17 |
8 Tooth Sprocket |
|
| a-18 |
Throttle Cable |
|
| a-19 |
Camel Sticker Kit |
|
| Motor Spares |
|
| B-1 |
Left Crank Casing |
|
| B-2 |
Right Crank Casing |
|
| B-3 |
Crank Complete With Conrod |
|
| B-4 |
Rings |
|
| B-5 |
Fly Wheel |
|
| B-6 |
Front Sprocket |
|
| B-7 |
Crank Bearing |
|
| B-8 |
Seals For Crank Casing |
|
| B-9 |
Conrod Bearing |
|
| B-10 |
C Clip |
|
| B-11 |
Gudging Pin |
|
| B-12 |
Spark Plug |
|
| B-13 |
Filter Housing + Bolts |
|
| B-14 |
Filter Sponge |
|
| B-15 |
Read Valves |
|
| B-16 |
Intake Manifold |
|
| B-17 |
Read Valves Bolts |
|
| B-18 |
Front Sprocket Bolts |
|
| B-19 |
Pull Start Bolts |
|
| B-20 |
Coil Bolts |
|
| B-21 |
Exhaust Bolts |
|
| B-22 |
Carburetor Bolts |
|
| B-23 |
Clutch Bolts |
|
| B-24 |
Crank Case Bolts |
|
| B-25 |
Head Bolts |
|
| B-26 |
Fly Wheel Bolts |
|
| B-27 |
Engine Mounting |
|
| B-28 |
Head Gasket |
|
| B-29 |
Intake Mainfold Gasket |
|
| B-30 |
Read Valve Gasket |
|
| B-31 |
Crank Casing Gasket |
|
| B-32 |
Carburetor Drain Plug Gasket |
|
| B-33 |
Carburetor Bowl Gasket |
|
| B-34 |
Clutch Pads |
